SAGE SERIES L100m

C20 Audiophile Top 25 of All Time AwardSound Image Award

Line Source On-Wall Loudspeaker

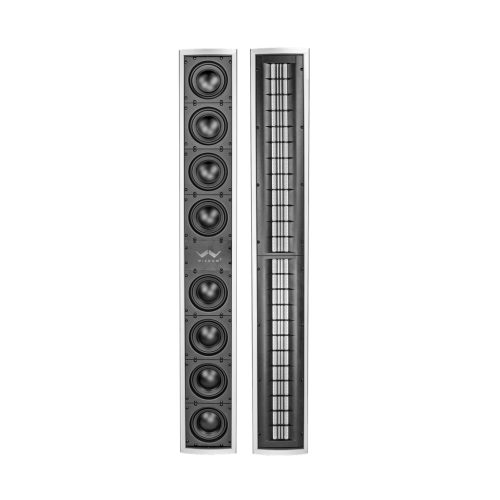

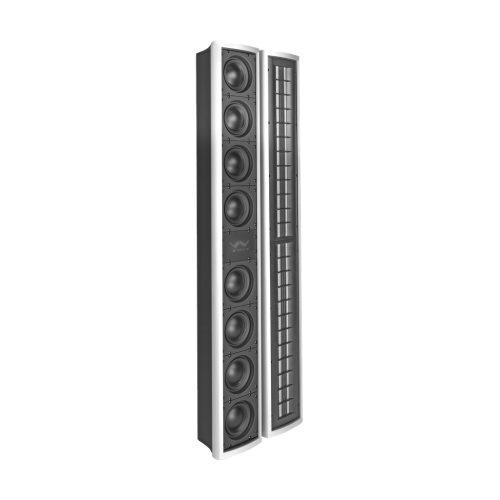

The L100m incorporates a 50-inch tall planar magnetic line source for mid and high frequencies, accompanied by a woofer array containing eight proprietary high-operating pressure woofers. The L100i (in-wall) and L100m (on-wall) Sage Series models feature the same line source planar magnetic technology found in the Sage Series L75 and L150 but measure a more compact 50 inches in height.

Architectural Design with Custom in Mind

Slim and elegant in design, the On-Wall Sage L100m blends nicely into any décor with optional custom lengths and colors available.

Eliminate Floor and Ceiling Reflection

The Line Source design eliminates floor and ceiling reflection while distributing sound levels uniformly across the width of any room.

Big Bass in Small Boxes

Featuring Sage Series dynamic woofers that are more than twice as powerful as typical woofers for great bass without huge, ugly boxes that are difficult to place.

Power Over Distance

Line Source provides a much better power constituency than a point source. This is a great benefit when designing an entertainment system in large modern open-floor living spaces as well as multi-tier theaters.

Key Features

Eliminate Floor and Ceiling Reflection
Enhance Clarity
More Power Over Distance
Share Experience

Highly Detailed & Dynamic
(2) 24” Planar Magnetic Driver
Covers 6 Octaves of Clarity
Light Weight Film PEEK
FAST Acceleration

Available as In-Wall L100i
In-Wall / On-Wall
Can be Mixed and Matched
Custom Colors Available L100m
Custom Length Grilles Available L100i
Custom Length Available L100m
Anodized Trim Bezels L100m

Full Range Loudspeaker
48” Planar Magnetic Driver
(8) High Operating Woofers
Outboard Active Crossover
DSP Required
3-CH’s of Amplification Required

Specification

Frequency Response40Hz – 20 kHz ± 2dB relative to the target curve
Impedance, Planar Section4.5 ohms resistive
Impedance, Woofer Section4 ohms nominal, 2.5 ohms minimum
Sensitivity, Planar Section95 dB/1w/1m
Power Handling, Peak>1000w
Shipping Weight, Bass Section62 lbs. (28 kg)
Shipping Weight, Planar Section32 lbs. (14.5 kg
(PMD Column) Dimensions HxWxD52.08” x 7.2” x 5.87” (132.3cm x 18.3cm x 14.9cm)
(Bass Column) Dimensions HxWxD52.08” x 7.2” x 5.87” (132.3cm x 18.3cm x 14.9cm)

Resources

PDF File Icon

L100M Owner’s Manual

PDF File Icon

L100M Data Sheet

PDF File Icon

L100M Mid Bass Drawing (PDF)

DWG File Icon

L100M Mid Bass Drawing (DWG)

PDF File Icon

L100M PMD Drawing (PDF)

DWG File Icon

L100M PMD Drawing (DWG)
