Insight Series P2i

INSIGHT SERIES P2i

LS4 Excite Award WinnerHome Theater Reivew Best of Award

Point Source In-Wall/Ceiling Loudspeaker

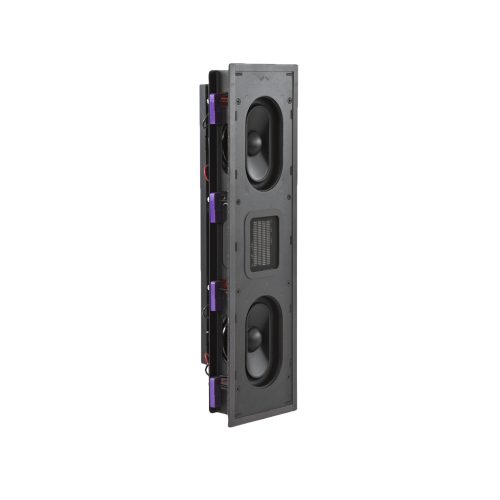

Compact in size, the Insight Series P2i defies traditional categorization. Sharing the design elements of its larger Insight Series siblings, it is hard to believe the musical and cinematic performance and dynamic quality of this small in-wall loudspeaker. The Insight Series P2i includes a planar magnetic driver – and two robust 3”x5” woofers for low distortion, high-resolution sound, and a superior dynamic range. The result is excellent, uniform horizontal dispersion throughout its operating range, providing superb off-axis coverage in both in-wall and in-ceiling applications.

Architectural Design with Custom in Mind

Slim and elegant in design, the in-wall/ceiling Insight Series P2i can be made to blend nicely into your décor through our optional custom-length grilles, and horizontal/vertical mounting options.

Key Features

In-Wall
In-Ceiling

Highly Detailed & Dynamic
(1) Planar Magnetic Driver
Covers 5 Octaves of Clarity
Light Weight Film PEEK
FAST Acceleration

Can be Mounted Vertically or Horizontally
Custom Length Grilles Available

Full Range Loudspeaker
(2) High Operating Woofers
1-CH’s of Amplification Required

Specification

Frequency Response
(Using Minimum Air Volume Spec)
80Hz – 20kHz
Impedance4 ohms
Sensitivity86 dB / 2.83 V / 1m
Crossover Frequency650 Hz
Max SPL (1 Meter)107 dB
Shipping Weight14 lbs. (7 kg)
Dimensions HxWxD19.44” x 5.39” x 3.43” (49.4cm x 13.7cm x 8.7cm)

Resources

PDF File Icon

P2i Owners Manual

PDF File Icon

P2i Datasheet

PDF File Icon

Wisdom Environmental Testing Data

PDF File Icon

P2i Drawing (PDF)

DWG File Icon

P2i Drawing (DWG)
