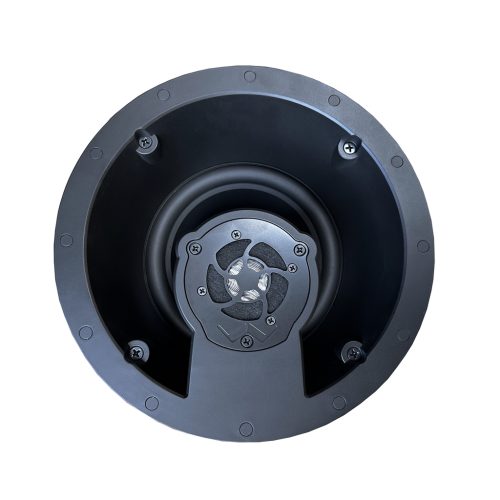

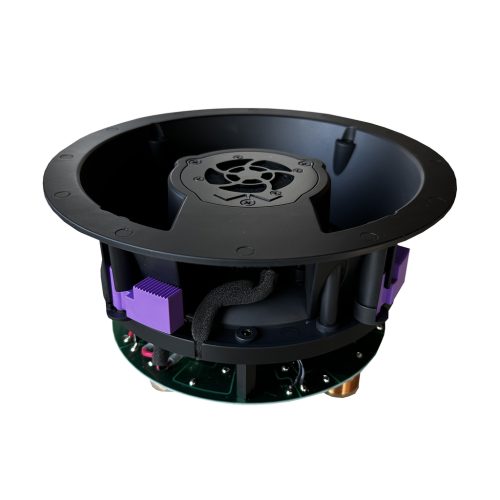

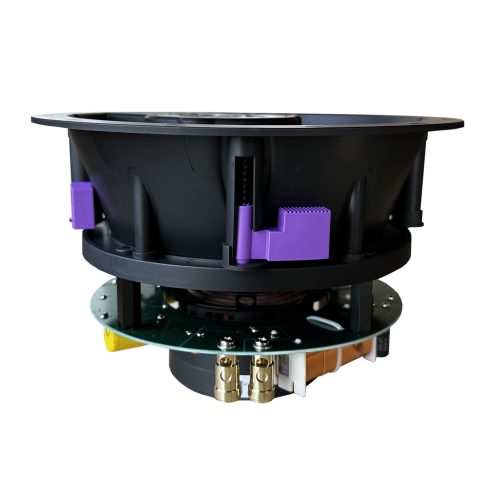

INSIGHT SERIES ICI6

Point Source In-Ceiling Multifunctional Loudspeaker

The Insight Series ICI6 in-ceiling speaker is designed for high resolution distributed audio zones, LCR channels, and also surround and overhead channels. It uses our incredible spiral planar magnetic driver for frequencies from 1200 Hz up to 20,000 kHz along with a robust 6-1/2 woofer resulting in amazing clarity, dynamics, and most importantly off axis consistency. It comes with both round and square bezel-less grilles. Optional Accessories: Fire-Rated Back Boxes, and flush-mount kits from SeeLess.

Key Features

Highly Detailed & Dynamic
(1) Sprial Planar Magnetic Driver
Covers 4 Octaves of Clarity
Light Weight Film PEEK
FAST Acceleration

The Perfect Product for Multiple Applications:
Hi-Fi 2-Channel In-Ceiling Stereo
Distributed Audio Zones
In-Ceiling Side & Rear Channels
In-Ceiling LCR
In-Ceiling Immersive Audio Applications

FBB-IC – Fire Rated Back Box Available Fire-Rated Back Box 6.625” Deep **Can only be ordered in 6-Packs**
ICI6 In-Ceiling Square (SL-WICI6S-030) or Round (SL-WICI6R-030) Flush Plaster Mounting Platforms by SeeLess. Ordered directly from SeeLess (Not available in all countries)

Full Range Loudspeaker
(1) High Operating Woofer

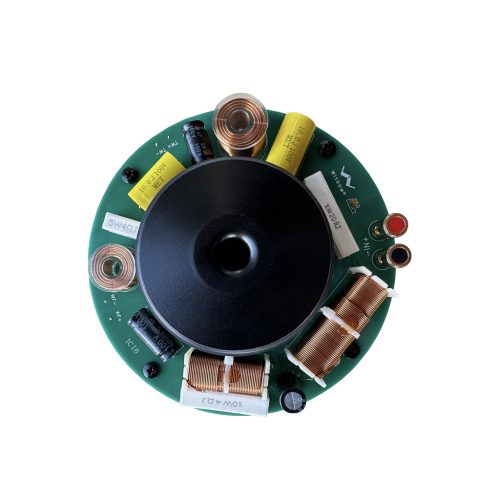

Passive Crossover
1-CH’s of Amplification Required

Specification

Frequency Response	48Hz – 20kHz +/- 3
Low Frequency Extension	32 Hz (-10 dB)
Coverage Angle (-6 dB)	150° (based on 40° being the reference axis)
Crossover Frequency	1200 Hz
Impedance	8 ohms
Sensitivity	82 dB
Minimum Recommended Power	50 Watts
Continuous Power Handling	100 Watts
Round Grille O.D.	8.94″ (227 mm)
Square Grille O.D.	8.9″ x 8.9″ (225.5 mm x 225.5 mm)
Speaker Depth	5.865″ (149 mm)
Required Installation Depth	5.76″ (147 mm)
Cutout Dimension	7.7″ (195 mm)
Dimensions – Diameter x Depth	8.744″ x 5.865″ (222.1 mm x 149 mm )
Backbox Enclosure Volume	2.0 ft³ (56L) Recommended minimum or larger, for rated frequency response 0.5 ft³ (15L) Minimum for use with a subwoofer and 80Hz Crossover
Shipping Weight	8.8 lbs. (4.0 kg)
