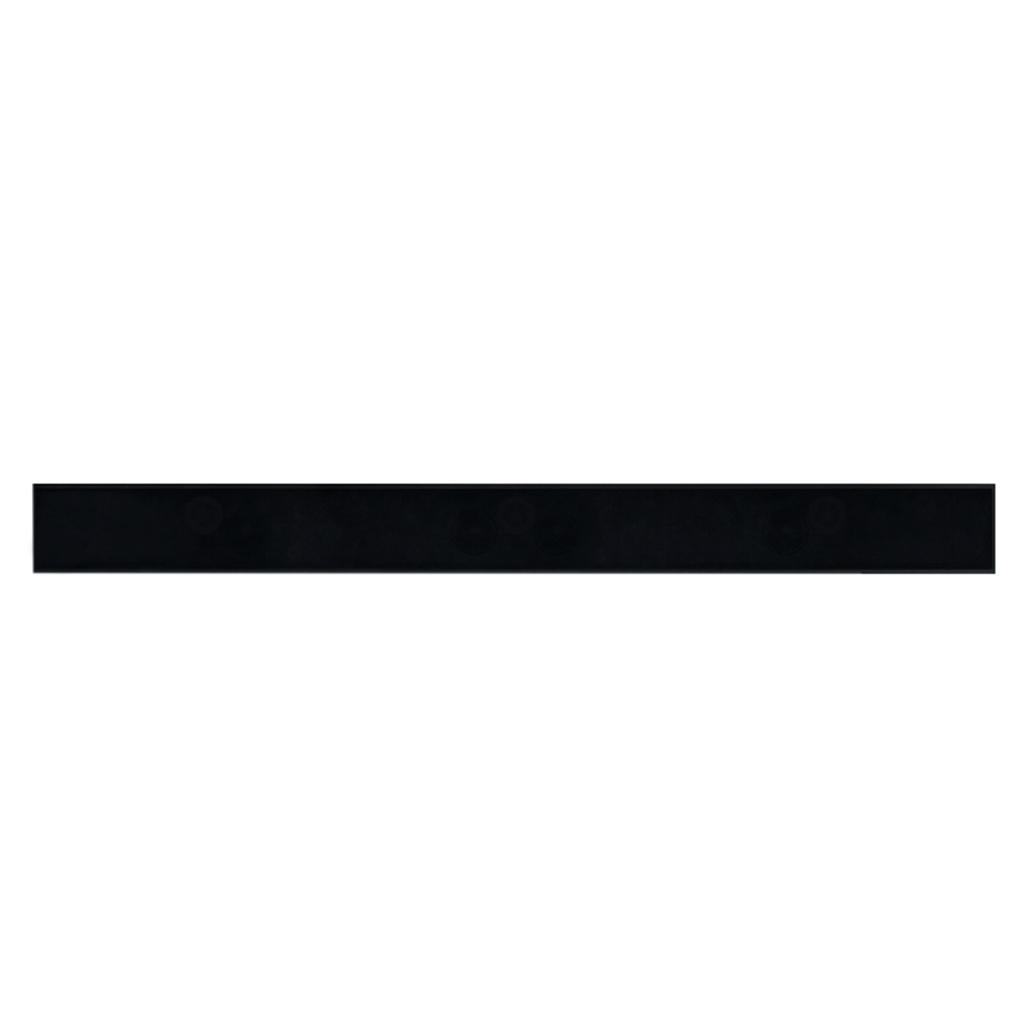

INSIGHT P7M-LCR SOUNDBAR
Point Source On-Wall/TV Mount/Free-Standing
The Insight Series P7m-LCR Soundbar was specifically designed to avoid the compromises inherent in other conventional soundbar “custom length” designs, so you will not have to give up any sound quality just to have it match the width of your TV. The P7m-LCR Soundbar is available in custom lengths to fit TV’s from 65″ (165.1cm) – 77″ (195.58cm) with a minimum width of 56.4” (143.26cm) and a maximum width of 70.4” (178.82cm). The P7m-LCR contains (3) Spherical PMDs for the high frequencies playing down to an amazing 900 Hz, and (4) 4.5″ Woofers to do the low-frequency heavy lifting.
Our mounting options include the Wall-Mount or TV VESA-Mount available for purchase separately. Mounting option must be chosen at the time of purchase.
Key Features
On-Wall (Bracket Sold Separately)
TV VESA Mount (Bracket Sold Separately)
Highly Detailed & Dynamic
(3) Planar Magnetic Spherical Drivers
Covers 4 Octaves of Clarity
Light Weight Film PEEK
FAST Acceleration
Available in 3 CH Configurations only
Available as On-Wall or TV-Mount using a VESA Bracket
Custom Length Available, Minimum width is 56.4” (1433mm), Maximum width is 70.4” (1788mm)
Full Range Loudspeaker
(4) 4.5″ Woofers
3-CH’s of Amplification Required
Specification
| Frequency Response | 80Hz – 20kHz +/- 3dB |
| Low Frequency Extension | 54hz (-10dB) |
| Recommended High Pass Crossover | 100Hz 24dB Linkwitz Riley Crossover |
| Impedance | Center CH = 4 ohms; Left & Right CH’s = 8 ohms |
| Sensitivity | 80dB 2.83V @ 1m |
| Coverage Angle Horizontal x Vertical (-6db) | Center = 100° x 110°; Left & Right Ch’s = 110° x110° |
| Net Weight (Max weight at largest TV size) | 31.5 lbs |
| Recommended Minimum Amplifier | 75 Watts |
| Maximum Continuous Power Handling | 200 Watts |
| TV Sizes | 65″ to 77″ diagonal TV sizes nominal |
| Min – Max Length | Minimum width is 56.4” (1433mm), Maximum width is 70.4” (1788mm) |
| Depth with Optional Wall Mount | 3.82” (97.2mm) |
| Depth with Optional VESA TV Mount | 3.95” (100.4mm) |
| Height | 7.25″ (184mm) |
| Amplifier Channels Needed | 3 |
Resources
Insight Series P7m-LCR Soundbar Owner’s Manual (PDF)
P7m LCR Mounting Drawings (PDF)
P7m LCR Wall-Mount Assembly (DWG)
P7m LCR Vesa Mount Full-Assembly Thickest Screen (DWG)
P7m LCR Vesa Mount Full-Assembly Thinnest Screen (DWG)
